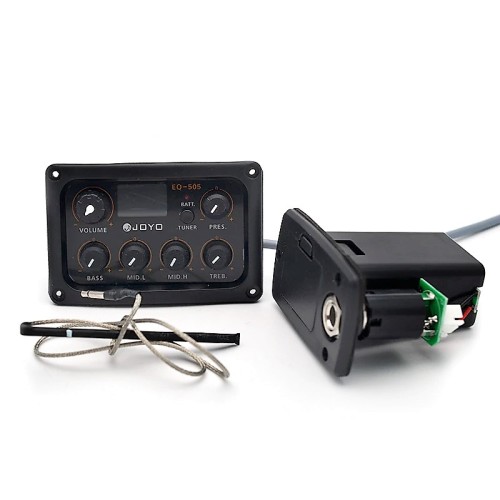

The JOYO 505 EQ is a quality PreAmp 5 Band EQualiser & Tuner for Acoustic and Classical Guitars it is supplied with everything you need to replace an exisisting EQ or convert into an electro acoustic instrument.


PLEASE NOTE ALL CONTROLS ARE NOW BLACK

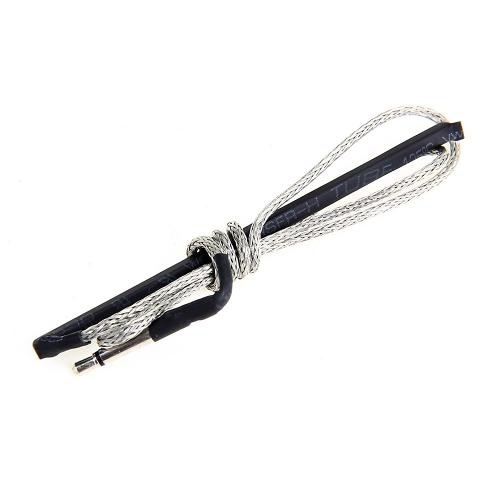

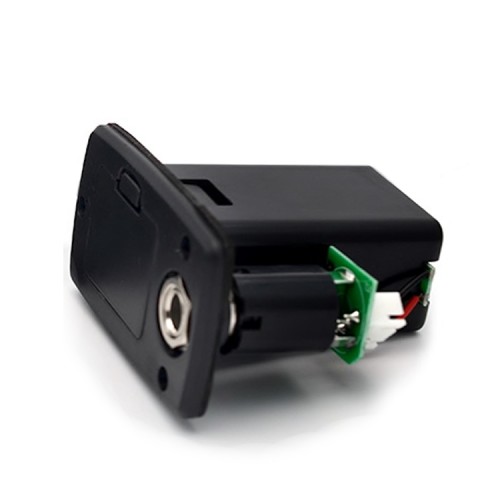

The Pre amp kit comes supplied with everything you need to convert acoustic guitars or upgrade existing units. Includes a piezo pick up to fit under the saddle and a battery compartment combined with jack input to connect to your amp.



Featuring controls for Volume, Bass, Middle 1, Middle2, Treble & Presence with color silicon control knobs. The unit is powered by one 6F22 9V battery and is supplied. A low battery LED indicator to remind you to replace the battery in time.



A built in Tuner allows you to make sure you are in key  With a tuning Range: of 0A (27.5Hz) - 8C (4186.01Hz) all notes are covered at A4 frequency 440mhz



- 5 Band EQ:
- Input Impedance: 10M Ohm



Adjustable Range:
- (Bass) +/- 12dB at 75Hz
- (Middle 1) +/- 12dB at 750Hz
- (Middle 2) +/- 12dB at 1KHz
- (Treble) +/- 12dB at 10KHz
- (Presto) +/- 12dB at 15KHz

Tuner:

- A4 Frequency: 440Hz
- Tolerance: + / - 1 cent
- Tuning Range: 0A(27.5Hz) - 8C(4186.01Hz)
- Power Source: 1 x 6F22 9V Battery



Package Weight: 154 G
Package Dimensions (L*W*H): 105 * 70 * 70 MM / 4.13 * 2.76 * 2.76 Inches

Package Includes:
1 x User Manual
1 x Plastic Cable Buckle
1 x Cable Tie
8 x Screw
1 x Piezo Pickup
1 x 6F22 9V Battery
